Category:

Industrial TFT Display

GDT250T2080 is a 2.5 inch color TFT-LCD display panel, 320x240 resolution, wide operating temp. -30℃~85℃, suitable for outdoor or cold environment, 4:3 contrast, 6 o'clock viewing angle, surface anti-glare treatment, 18-bit RGB (with T-CON) + 4-wire SPI interface, superior display quality, wide range of applications.

Product description

Video display





PARAMETERS



PART NUMBER GDT250T2080
SIZE 2.5''
DISPLAY MODE 262K
CONTRAST RATIO 500
LCD DISPLAY RATIO 0.16875
RESOLUTION 320xRGBx240
OUTSIDE DIMENSION OF LCD PANEL 59.2(W)x50.15(H)x3.35(D) (mm)
ACTIVE AREA OF LCD PANEL 50.88(H)x38.16(V) (mm)
STRUCTURAL DIMENSION OF PCBA 50.0(W)x50.0(H)x5.2(D) (mm)
START TIME 30ms
VIEWING ANGLE (U/D/L/R) 50°/70°/75°/75°
OPERATING TEMP. -30℃~85℃
STORAGE TEMP. -40℃~90℃
INPUT VOLTAGE 3.0V
TYPE TN
INTERFACE 18-bits RGB +4-wire SPI
DOT PITCH 0.053 (*3) (W) x 0.159 (H)(mm)
BRIGHTNESS 500cd/m2
BACKLIGHT LED

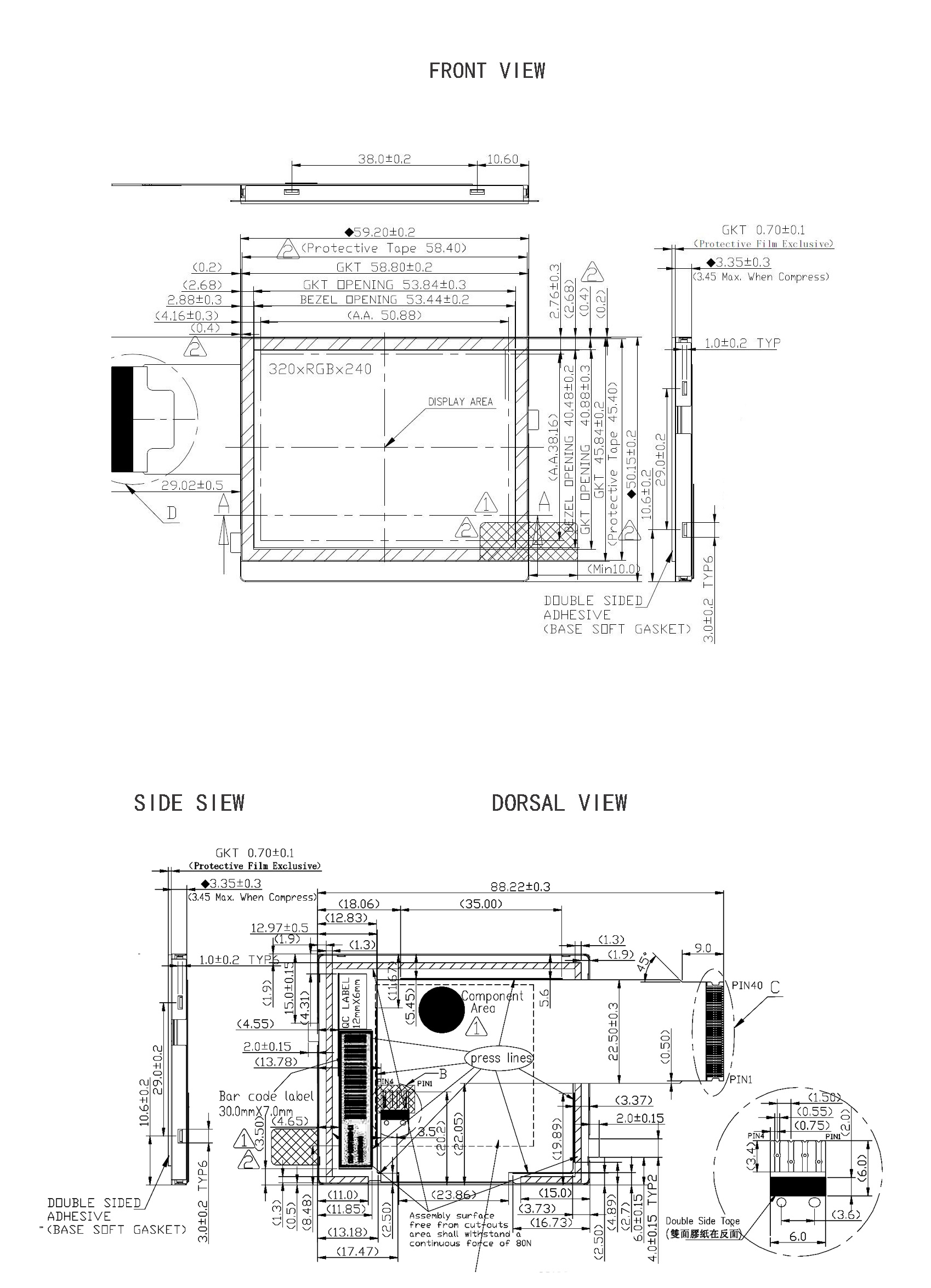

DRAWING



A small industrial TFT LCD display panel is a remarkable component with specific characteristics and applications. These display panels are designed to meet the demands of industrial settings. They typically offer high resolution and clear image quality, ensuring that information is presented precisely and accurately. The small size of these panels makes them suitable for integration into various compact industrial devices and equipment. Despite their small stature, they still manage to provide a good viewing experience. Their durability is a crucial aspect. They are built to withstand the rigors of industrial environments, including vibrations, temperature fluctuations, and potential impacts. This reliability ensures consistent performance in challenging conditions. These panels often have wide viewing angles, allowing for clear visibility from different positions. They may also support touch functionality, enhancing user interaction and control. In industrial applications, such as instrumentation, control panels, and specialized machinery, the small industrial TFT LCD display panel plays a vital role. It enables operators to access and monitor critical data and information easily. The technology behind these panels is constantly evolving to improve performance, reduce power consumption, and enhance the overall user experience. Their compact size and functionality make them an essential element in the world of industrial electronics, facilitating efficient and effective operation in a wide range of industries.
