2.4 inch Rigid AMOLED 450x600 Colorful oled display supports -20℃~80℃, GDOJ024C45


Category:

OLED Screen

GDOJ024C45 is a 2.4 inch AMOLED display, it is a color active martix TFT LCD that uses amorphous silicon TFT as a switching device.

Product description

Video display



INTRODUCTION

GDOJ024C45 is a 2.4 inch AMOLED display, it is a color active martix TFT LCD that uses amorphous silicon TFT as a switching device. It is composed of a TFT LCD panel, a timing controller, voltage reference, common voltage, column driver, androw driver circuit. This TFT LCD has a 2.4-inch diagonally measured active display area with 450 horizontal by 600 vertical pixel array resolution.

This oled module is display terminals for smart home.







FEATURE

  ● Command mode

  ● Brightness Dimming

  ● AOD (Always on display)

  ● SPI/MCU/MIPI Interface

  ● 16.7M (24bit) Color Depth

  ● -20~80 Operating Temperature

  ● Display module brightness value OTP in Register

  ● Gamma Correction, RGB Separate γ Correction Function







PARAMETERS



PART NUMBER GDOJ024C45
DIAGONAL SIZE 2.4"
DISPLAY MODE AMOLED
DISPLAY COLOR 16.7M
DRIVER IC(Type) RM690B0
NUMBER OF PIXELS 450RGBx600
INTERFACE SPI/MCU/MIPI
ACTIVE AREA(mm) 36.72x48.96
PIXEL PITCH(μm) 81.86
PIXEL ASPECT RATIO 3:04
BRIGHTNESS(Typ) 800 cd/m2
OPERATING TEMP. -20℃~80℃
STORAGE TEMP. -40℃~80℃
CONTRAST 100000:1
FRAME RATE(Hz) 60

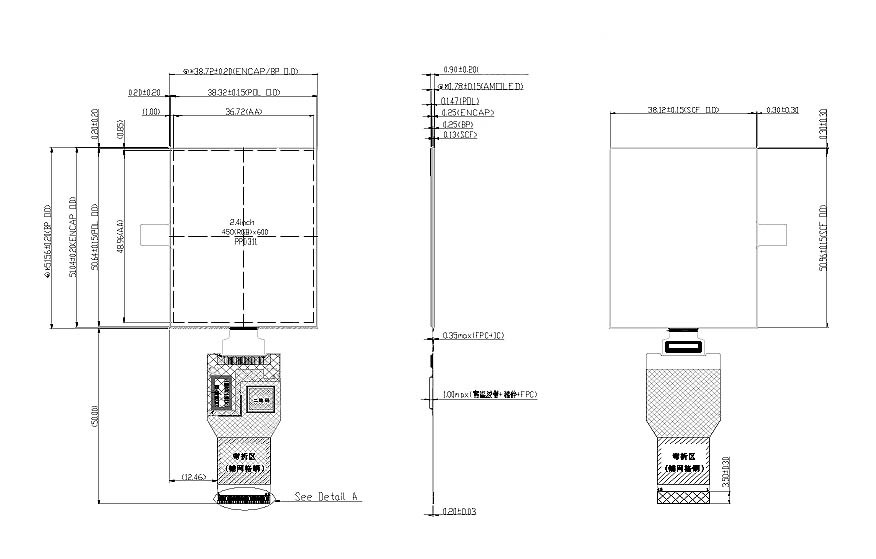

DRAWING

1
